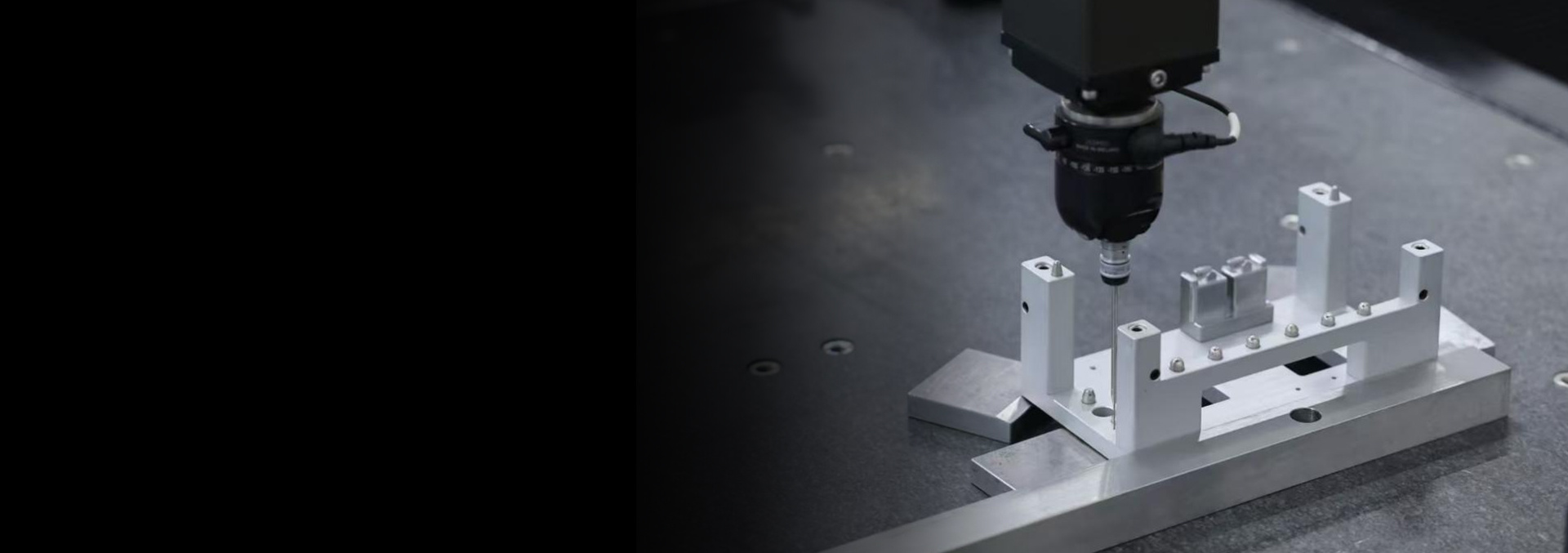

What is CMM?
Coordinate Measuring Machines (CMM) are indispensable high-precision inspection equipment in modern precision manufacturing. As a professional manufacturer of CNC machining, Zenithlong is equipped with multiple advanced CMMs, capable of accurately measuring the three-dimensional dimensions, shape, and positional tolerances of complex parts, and providing comprehensive inspection reports.
Working principle of CMM:
Working principle of CMM: The coordinate measuring machine (CMM) establishes a reference coordinate system based on the Cartesian coordinate system (X, Y, Z axes)
Achieve precise measurement through the following steps:
Precision positioning system:
High-precision air-bearing guide rails and servo control systems ensure smooth movement of the measuring head in three-dimensional space.
Data collection:
The ruby probe contacts the surface of the workpiece, recording the precise coordinates of thousands of measurement points.
Data analysis:
Professional measurement software, such as Rational Dims, compares and analyzes point cloud data with CAD models.
Report Generation:
Professional measurement software, such as Rational Dims, compares and analyzes point cloud data with CAD models.
Our CMM equipment capability
| Project | Description |
|---|---|
| Measurement Range | Measure large workpieces with dimensions of 1200x1000x800mm |
| Measurement Accuracy | Achieve high repeatability accuracy of (2.4+3L/1000)um |
| Multi-Functional Probe System | Equipped with contact, optical, and laser scanning probes |
| Temperature Control | Operate in a constant temperature measurement room at 20±1℃ to eliminate the influence of thermal deformation. |
Why did you choose ZXLcnc as your supplier?
As a professional CNC machining manufacturer, ZXLcnc has deeply integrated coordinate measuring machine (CMM) inspection into the manufacturing process, achieving a closed-loop control of "machining-inspection-feedback". For more information about our CMM inspection services, please contact us.
One-stop solution
From determining the processing technology, CNC machining, to post-processing surface treatment and quality inspection, we provide a one-stop solution
Technical team support
Experienced mechanical engineers are responsible for the entire process, from project design to processing
Quick response capability
Provide a free quotation and detailed progress report within 24 hours
Confidentiality and security
Strictly protect customers' intellectual property rights and design data
CONTACT US
Are you searching for a reliable supplier?
Contact us immediately, and we will conduct CMM inspection for each of your parts and provide inspection reports, so you don't have to worry about quality.
